| Specification Category | Details |
|---|---|

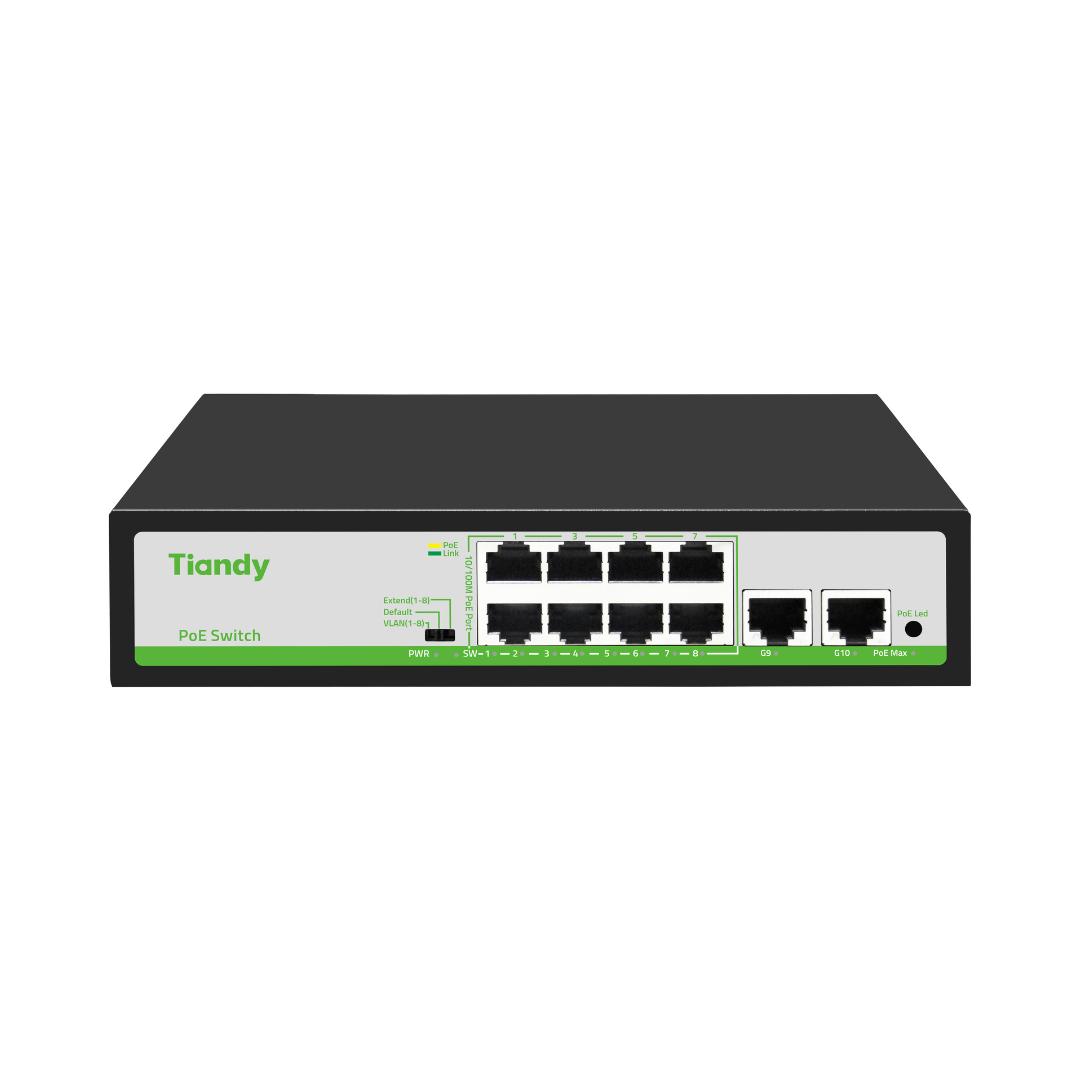

| Model Name | TC-P3S010 Spec:F/0820/AT/90 |
| Device Type | Unmanaged PoE Ethernet Switch |
| Ethernet Ports | 8 × PoE RJ45 (10/100 Mbps) |
| Uplink Ports | 2 × RJ45 (10/100 Mbps) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Max PoE Power per Port | Up to ~30 W |
| Total PoE Power Budget | ~90 W |
| Switching Bandwidth | ~2 Gbps |
| Forwarding Rate (Throughput) | ~1.488 Mpps |
| Transfer Mode | Store-and-forward |
| Auto MDI/MDIX | Supported |
| Flow Control | IEEE 802.3x (full duplex) / Back-pressure (half duplex) |
| PoE Priority / QoS | Supported (Port priority 1–8) |
| Modes (via DIP switch) | Default / VLAN / Extend |
| VLAN (Port Isolation) | Supported |
| Extend Mode | Up to ~220 m @ 10 Mbps (ports 1–8) |
| Surge & ESD Protection | 4 kV surge; ESD 8 kV air / 6 kV contact |
| LED Indicators | Power, PoE, Link/Act, DIP status |
| Housing | Metal desktop |
| Dimensions | ~200 × 118 × 44 mm |
| Weight | ~0.68–0.69 kg |
| Power Input | AC 100–240 V |
| Operating Temp. | –10 °C to +50 °C |
| Certifications | CE, RoHS (varies by seller) |
